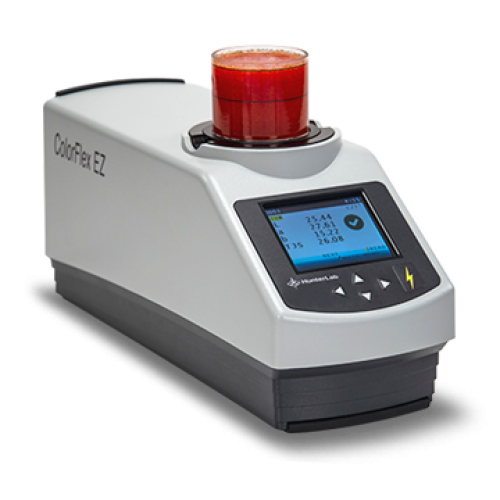

ColorFlex EZ Tomato Spectrophotometer / Colorimeter HunterLab America

Easy-to-use. Compact. And Increased Performance. ColorFlex EZ Spectrophotometer gives you unsurpassed confidence and trust in your outcomes.

ColorFlex EZ Tomato is specifically designed to measure tomato color in its every processed form – paste/purée, sauce, ketchup, juice, as well as fresh tomatoes. Tomato color scales provided in firmware include: Tomato Paste Score (TPS), Tomato Sauce Score (TSS), Tomato Catsup Score (TCS), Tomato Juice Score (TJS), a/b ratio, Fresh Tomato Color Index (FTCI) & Lycopene index.

Hunter L,a,b color and CIE L*a*b* color, are also provided within the firmware, allowing for the capability to also use your ColorFlex EZ Tomato to measure the reflected color of a wide range of non-tomato samples - liquids, semisolids, powders, and solids. Inside its optional, custom designed, watertight carrying case will be everything you will need to immediately start measuring tomato color values, and includes: ColorFlex EZ Tomato instrument, Complete set of calibration & diagnostic tiles, HunterLab Tomato Reference Standard, 2 glass sample cups, Port insert for sample cup, Sample cup opaque cover and backed up by the finest customer support in the industry and USDA approved.



                                                                                                                                                                  Production - Specification

Measurement :

Measurement Principle: Port up or Port forward dual-beam spectrophotometer

 Geometry: Directional annular 45° illumination / 0° viewing

 Spectrophotometer: Sealed optics; 256-element diode array and a high resolution concave holographic grating

Port Diameter/View Diameter: 31.8 mm (1.25 in) illuminated/ 25.4 mm (1 in) measured

 Specular Component: Excluded

 Spectral Range: 400 nm - 700 nm

 Spectral Resolution: < 3 nm

 Effective Bandwidth: 10 nm equivalent triangular

 Reporting Interval: 10 nm

 Photometric Range: 0 to 150 %

 Light Source: Pulsed Xenon Lamp

 Flashes per Measurement: 1 flash

 Lamp Life: > 1 million flashes

 Measurement Time: < 1 second from button push to measurement 2 seconds from button push to data display

 Minimum Interval Between Measurements: 3 seconds

 Standards Conformance: CIE 15:2004, ISO 7724/1, ASTM E1164, DIN 5033, Teil 7 and JIS Z 8722 Condition C

 Standards Traceability: Instrument standard assignment in accordance with National Institute of Standards and Technology (NIST) following practises described in CIE Publication 44 and ASTM E259

Performance :

Inter-Instrument Agreement:

∆E*< 0.15 CIE L*a*b* (Avg) on BCRA II Tile Set

∆E*< 0.25 CIE L*a*b* (Max) on BCRA II Tile Set

Colorimetric Repeatability: ∆E*< 0.05 CIE L*a*b* on white tile (20 Readings)

Firmware :

Data Views: Colour Data, Color Difference Data, Tristimulus Colour Plot, Spectral Data, Spectral Difference Data, Spectral Plot, Spectral Difference Plot

USB Flash Drive Features: Backup of Setups and Data, Setup Transfer to Multiple Units, Data Export to Excel

Other Features: Pass/Fail, Average Multiple Readings, Search for Closest Standard

Illuminants: A, C, D50, D55, D65, D75, F2, F7, F11

Observers: 2° and 10°

Colour Scales: CIE L*a*b*, Hunter Lab, CIE L*C*h, CIE Yxy, CIE XYZ

Coloir Difference Scales: ∆L*a*b*, ∆Lab, ∆L*C*H, ∆L*C*h, ∆Yxy, ∆XYZ

Coloir Difference Indices: ∆E*, ∆E, ∆C*, ∆C and ∆Ecmc

Indices and Metrics: E313 Whiteness and Tint (C/2° or D65/10°), E313 Yellowness (C/2° or D65/10°), D1925 Yellowness (C/2°), Y Brightness, Z%, 457 nm Brightness, Opacity, Colour Strength (Average and Single Wavelength), Gray Change, Gray Stain, Metamerism Index, Shade Number

Tomato Colour Model Only: Tomato Colour Scores:

TPS - Tomato Paste Score

TSS - Tomato Sauce Score

TCS - Tomato Catsup Score

TJS - Tomato Juice Score

Tomato a/b Ratio

Lycopene Index

Citrus Colour Model Only: Citrus Number, Citrus Redness, Citrus Yellowness Data Storage:

As Standard - 250 spectral or tristimulus with Pass/Fail tolerances as Working, Physical, Numeric and Hitch

As Sample - 2000 spectral

Languages: Chinese, English, French, German, Italian, Japanese, Spanish

Physical/Electrical :

Dimensions:

Height: 16 cm (6.3 in.)

Width: 13 cm (5.1 in.)

Depth: 36 cm (14.2 in.)

Weight: 4.5 kg (9.9 lbs)

Display: 7.1 cm x 5.4 cm (2.8 in. x 2.1 in.) backlit colour LCD

Interface: 3 USB 2.0 ports

Power: 100 to 240 VAC 47 to 63 Hz

Operating Environment: 10° to 40°C (50° to 104° F), 10 % to 90 % RH, noncondensing

Storage Environment: -20° to 65°C (-5° to 150° F), 10 % to 90 % RH, noncondensing

Standard Accessories:

Calibrated instrument white tile

Certificate of traceability

Black glass

Green diagnostic tile

Universal AC adaptor

Computer interface cable

USB flash drive

ColorFlex EZ User guide
