Ideal for demanding research and quality control

applications.

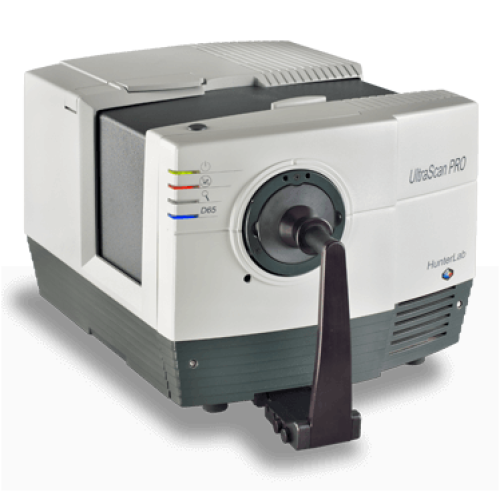

The D65 illumination source is calibrated in the ultraviolet region for the accurate measurement of whitening agents. UltraScan PRO has an extended wavelength range into the near infrared and near ultraviolet that permits the measurement of camouflage materials and UV blockers. The system uses diffuse/8° geometry with automated specular component inclusion/exclusion. It also features three sizes of sample measurement areas with automated lens change. The UltraScan PRO includes EasyMatch QC software and an electronic record keeping version that is 21 CFR 11 compliant is available.

Use UltraScan PRO for both research and quality control. From opaque solids to clear liquids to transparent films, UltraScan PRO precisely measures both reflected and transmitted color, spectral reflectance, spectral transmittance and transmission haze. A host of measurement features and specialized sample-handling devices make UltraScan PRO the most versatile high-performance color measurement benchtop spectrophotometer available.

Explore all the additional features and benefits below.







Production - Specification


Measurement  :

Measurement Principle: Dual-beam spectrophotometer/colorimeter

Geometry: Diffuse d/8° reflectance, d/8° total transmission, d/0° regular transmission

Spectrophotometer/Colorimeter: Two polychromators, each with a 512 element diode array and a high resolution, concave holographic grating

Sphere Diameter: 152 mm (6 in.)

Sphere Coating: Spectraflect™ for sphere, Duraflect™ for port plate and specular exclusion door

Port Size/Measured Area:

Port Diameter/View Diameter in RSIN/RSEX reflectance modes

Large Area View (LAV): 25 mm (1 in) illuminated/19 mm (0.75 in) measured

Medium Area View (MAV): 13 mm (0.5 in) illuminated/9 mm (0.35 in) measured

Small Area View (SAV): 7 mm (0.25 in) illuminated/4 mm (0.16 in) measured

Port Diameter/View Diameter in TTRAN transmittance modes

Large Area View (LAV): 25 mm (1 in) illuminated/17.4 mm (0.69 in) measured

Medium Area View (MAV): 25 mm (1 in) illuminated/13.2 mm (0.52 in) measured

Small Area View (SAV): 25 mm (1 in) illuminated/11.6 mm (0.46 in) measured

Port Diameter/View Diameter in RTRAN transmittance mode where lens is field stop for all areas of view

Large Area View (LAV): 17 mm (0.67 in) illuminated/17 mm (0.67 in) measured

Medium Area View (MAV): 17 mm (0.67 in) illuminated/17 mm (0.67 in) measured

Small Area View (SAV): 17 mm (0.67 in) illuminated/17 mm (0.67 in) measured

Lens Switching for LAV/MAV/SAV: Automatic

Specular Component: Automated Included (RSIN) or Excluded (RSEX) in reflectance

Spectral Range: 350 nm - 1050 nm full CIE visible range plus NIR

Wavelength Resolution: < 2 nm

Effective Bandwidth: 5 nm equivalent triangular

Reporting Interval: 5 nm

Photometric Range: 0-150 %

Light Source: Pulsed Xenon lamps (3), calibrated and controlled in the UV range

Automatic UV Control:

400 nm cutoff filter for UV control and UV exclusion

Optional 420 nm cutoff filter for UV exclusion

Transmission Modes: Total (TTRAN) and Regular (RTRAN)

Transmission Compartment:

Large and open on 3 sides

10.2 cm D X 35.6 cm W x 16.5 cm H (4 in. D x 14 in. W x 6.5 in. H)

Standards Conformance

Reflectance: CIE 15:2004, ISO 7724/1, ASTM E1164, DIN 5033, Teil 7 and JIS Z 8722 Condition C

Transmittance: CIE 15:2004, ASTM E1164, DIN 5033 Teil 7 and JIS Z 8722 Condition E, G Haze conformance per ASTM D1003 Section 8. Procedure B Spectrophotometer

Standards Traceability: Instrument standard assignment in accordance with National Institute of Standards and Technology (NIST) following practices described in CIE Publication 44 and ASTM E259



Performance :

Colorimetric Repeatability (20 readings):

< 0.03 ∆E* CIE L*a*b * on white tile in LAV mode

< 0.07 ∆E* CIE L*a*b* on blue denim tile in LAV mode

Spectral Repeatability: Max 0.20 range between 435 nm and 695 nm

Inter-instrument Agreement:

∆E*< 0.09 CIE L*a*b* (Avg) on BCRA II Tile Set

∆E*< 0.20 CIE L*a*b* (Max) on BCRA II Tile Set



Physical/Electrical :

Dimensions:

Height: 32.3 cm (12.7 in.)

Width: 42.0 cm (16.5 in.)

Depth: 49.8 cm (19.6 in.)

Weight: 25.9 kg (57 lbs)

Power:

90 to 250 VAC, 50 to 60 Hz

60 watts passive, 120 watts maximum

Interface: RS-232C serial, 19,200 baud, DB9 (female) terminal

Operating Environment: 4° to 38°C (40° to 100° F), 10 % to 85 % RH, noncondensing

Storage Environment: -21° to 66°C (-5° to 150° F), 10 % to 90 % RH, noncondensing (-5° to 150° F)

Standard Accessories:

Calibrated instrument white tile

Certificate of traceability

Black calibration light trap

Transmittance zero calibration plate

Green diagnostic tile

Wavelength diagnostic filter

Fluorescent standard

Reflectance sample clamp

LAV aperture

MAV aperture

SAV aperture

RS-232C cable

USB-to-Serial adapter

Power cord

EasyMatch QC Software

EasyMatch QC Basic manual
