| Price: | 0৳ |
| Status : | Call For Price |
| Brand: | JSR Korea |
|
Future
Performance |
|
• Temperature Range ambient
+5 oC to 50 oC • Temp. accuracy within +/-
0.2 oC • Speed range 10 to 300 rpm • 20 mm orbital stroke • Digital Timer set up to
99hr 59min by 1 min • W350 x D350 mm standard
shaking platform • Powerful driving mechanism
with “Slow Start Function” • Silent BLDC motor provides
long shelf life and maintenance free • Maximum loading capacity
up to 10 kgs |
|
Controller |
|
• Advanced MCU processor
applies precise speed control technology • 3 Preset Shaking Programs • 10 shaking steps per each
program • Touch-sensitive
Multi-Functional Capacitive Button compatible to all kind of latex gloves as
well as finger touch. • Easy-to-use Jog Dial for
quick and convenient setting temperature, speed and timer. • Push to Run and Stop
control. • High-fidelity clear back
light LCD displays complete setting and operating condition at a glance. Easy
to monitoring set values, present speed and time. |
|
Construction |
|
• Hinged door with
transparent acrylic window • Silent DC motor • Rugged and low profile ABS
plastic body |
|
Convenience |
|

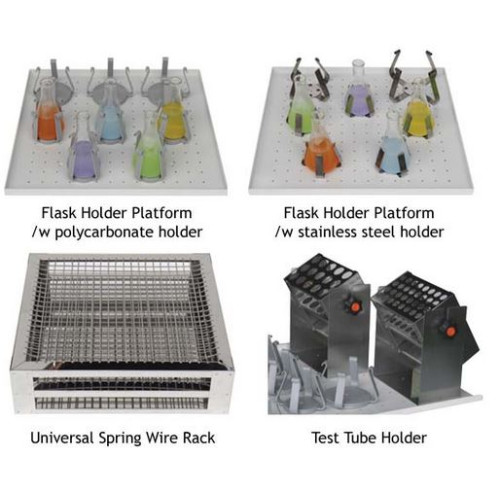

• Interchangeable shaking
platform • Max. loading capacity of
universal flask platform 16ea x 50/100ml, 9ea
x 250/500ml, 5ea x 1L • Anti-Slip Silicone Mat |
|
Safety |
|
• Over-Temperature Cut-Off • Over load protection • Over current protection |
Model
|
Description |
|
|
Performance Data |
|
|
Heating |
Forced Air Convection |
|
Temperature Range |
ambient +5 oC ~ +50
oC |
|
Temperature Accuracy |
+/- 0.2 oC at +37
oC |
|
Temperature Uniformity |
+/- 1.0 oC at +37
oC |
|
Type of Shaking |
Orbital |
|
Speed Range |
10 to 300 rpm, 1 rpm resolution |
|
Orbital Stroke |
20 mm |
|
Max Load |
10 kgs |
|
|
|
|
Controller |
|
|
Type |
Digital Fuzzy Control with
Capacitive Touch Button and Jog Dial |
|
Timer |
99hr 59min by 1 min resolution |
|
Display |
Full Size Digital Back Light LCD
Display |
|
|
Independent ON/OFF Switch |
|
Program Function |
3 Preset Shaking Programs, 10
Steps for each program |
|
|
|
|
Dimensions |
|
|
Inner Dimensions (W x D x H) |
400 x 400 x 280 mm |
|
Outer Dimensions (W x D x H) |
400 x 600 x 370 mm |
|
Platform Dimensions (W x D) |
350 x 350 mm |
|
Maximum Usable Height |
230 mm |
|
|
|
|
Motor |
|
|
Type |
DC Motor |
|
Power |
45 Watt |
|
Rotating Direction |
Clockwise |
|
|
|
|
Safety Data |
|
|
Safety Device |
Over Load Protection |
|
|
Over Current Protection |
|
|
Door Cut-Off Switch |
|
|
|
|
Material Data |
|
|
Body |
ABS |
|
Platform |
Aluminum / Steel |
|
Electrical Data |
|
|
Rated voltage |
230 ± 10% VAC |
|
Power frequency |
50/60 Hz |
|
Nominal power |
350 Watt |
|
Phase |
1 Phase |
|
Plug configuration |
CEE 7/7 Schuko or BS 1363 |
