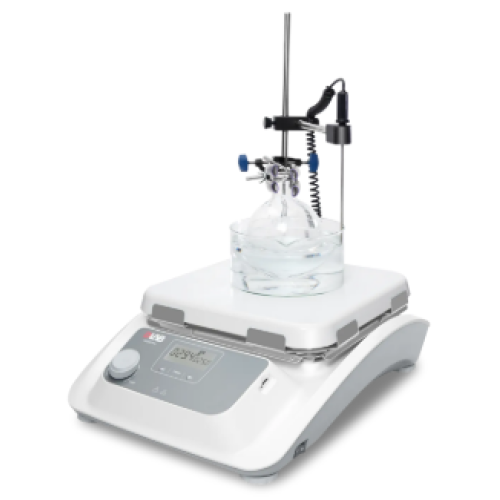

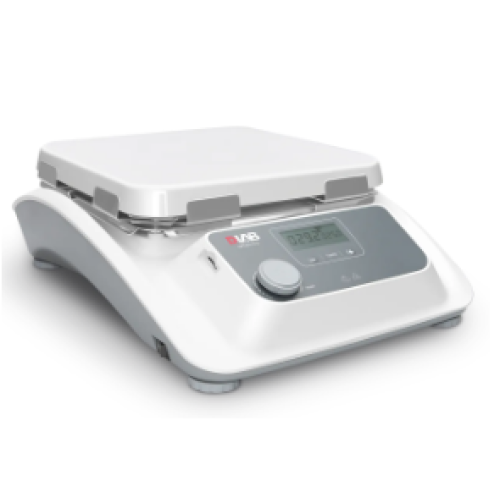

HP500-Pro LCD Digital Hotplate/HP500-Pro/Work plate Dimension 254x254mm(10 inch)/ DLAB USA

LCD screen shows temperature, Max. temperature up to 500℃

• 10-inch glass ceramic work plate provides excellent chemical-resistant performance and most efficient heat transfer
• External temperature control is possible by connecting the temperature sensor (PT
• 1000) with an accuracy at ±0.2°C
• The “HOT”warning will flash if the work plate temperature is above 50°C even     when the hotplate is turned off
• Heating temperature: room temperature -500℃ .
• Data connector : The SD card records the instrument's running data in real time.
• Timing function: the running time of the instrument can be set.

Cat.No.

5031132115

Work plate Dimension

254x254mm(10 inch)

Work plate material

Glass ceramic

Heating temperature range

Room Temp.-500℃, increment 1℃

Temperature display

LCD

Time display

LCD

Temperature control accuracy

±1℃ (<100℃)±1%(>100℃)

Temperature display accuracy

±0.1℃

External temperature sensor

PT1000 (±0.2℃)

"Hot" warning

50℃

Overheating temperature protection

540℃

Heating position

1

Timer function

1min-99h59min

Protection class

IP20

Power

1700W
