Features

·         Microprocessor Based

·         4 Digit Seven Segment Bright Red LED Display

·         Easy to Use, Press one button for easy switching of %T, Abs., Conc. modes

·         Auto Zero and Blank

·         Printer Attachment Facility

·         PC Connectivity through USB

·         Large Sample Compartment, can accommodate 5-100 mm path length cuvettes with optional holders.

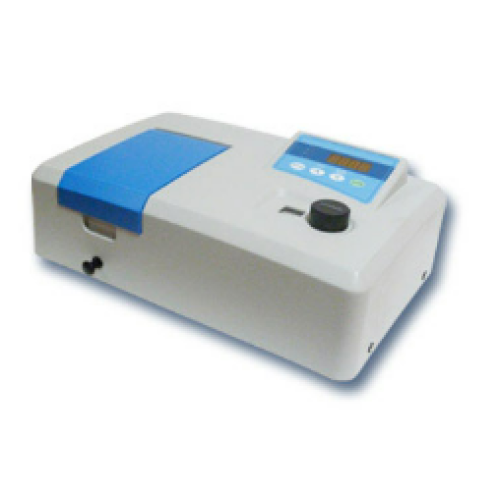

Microprocessor Spectrophotometer is a solid state microcontroller based instrument designed for quick and accurate spectrophotometric analysis of any concentration.

It operates at a wavelength range of 325 nm to 1000 nm. The output is available on a 4 Digit seven segment bright red LED display in terms of %Transmission (%T),

Absorbance (Abs.), Concentration (Conc.) and K factor. The instrument uses the latest microprocessor technology and advanced engineering techniques so as to give

enhanced accuracy and reproducibility. This is the most economical, reliable, rugged and accurate instrument. The system has 4 soft touch membrane type keys for ease

of operation. It has a ‘Mode’ key for easy switching of various operating modes. Facility for automatic setting of zero / blank is provided. Provision has also been made for

attachment of any dot matrix printer using Centronics interface and PC connectivity through USB port. System has a 4-Position rapid cuvette changer (Test Tube Holder) selector.

Specifications

Optics	Single Beam, Grating 1200 lines/mm
Wavelength Range	325 – 1000 nm
Wavelength Resolution	2 nm
Spectral Bandwidth	4 nm
Wavelength Accuracy	± 2 nm
Photometric Accuracy	± 0.5 %T
Photometric Repeatability	0.3 %T
Photometric Range	0 – 200 %T, – 0.3 to 3A, 0 – 9999 Conc.
Photometric Mode	%Transmission, Absorbance, Concentration and K Factor
Stray Light	< 0.3 %T
Stability	± 0.002 A/h @ 500 nm
Display	4 Digit 7-Segment Bright Red LED
Detector	Silicon Photodiode Reviews (0) : Get specific details about this product from customers who own it. Write your review Rating:  Bad           Good Continue Related Product Laborator-microprocessor-visible-spectrophotometer-2305-wavelength-range-325-1000nm-electronic-india 0৳ © Paradise Scientific Company Ltd.
