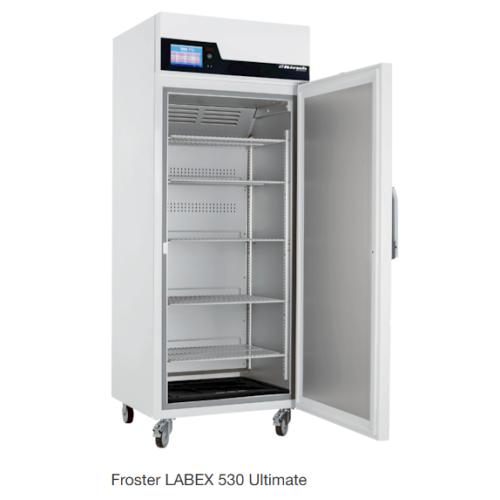

Laboratory-Laboratory Freezers also explosion-proof- Froster LABEX 530 Ultimate-External dimensions 77 x 97 x 195.5 (W x D x H in cm)-KIRSCH Germany

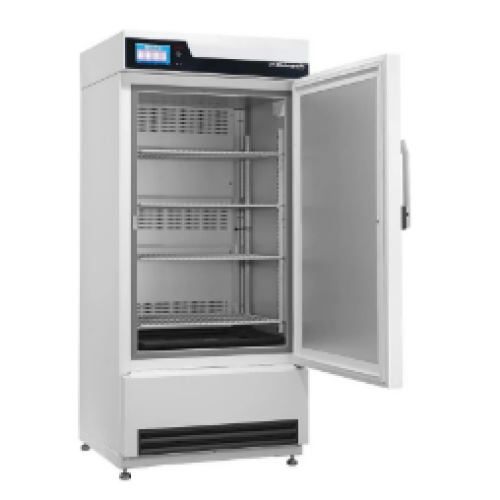

LABO model without ex-proof interior

KIRSCH Laboratory Freezers stand out particularly thanks to their thick housing insulation made of high-quality, pressure-foamed material. The storage temperature

can be adjusted between -5 °C and -30 °C depending on the model. Maximized temperature stability and a thick housing insulation made of high-quality, pressure-foamed

material. Each laboratory freezer guarantees a safe storage for your sensitive goods.

The LABEX®-line with ex-proof cooling

Maximum temperature stability and explosion proofness.
When storing flammable or explosive substances, the ignition sparks and as a consequence explosions can occur due to:

• static discharge (e.g. via the user, pulling of drawers) or
• electrical components in the cabinet (e.g. temperature sensors, fans).


Therefore our LABEX® freezers are constructed intrinsically safe.
Sparks cannot occur - even in the event of malfunction. All parts are dedicated for the use in Zone 2 or even Zone 1* explosion atmospheres, in accordance with

the ATEX-guideline 2014/34/EU. Kirsch medical uses:

• a special grounding concept of the housing to discharge static electricity (door handle, antistatic drawers etc.)
• spark free supply of all electrical parts in the interior.

Liability According to the ATEX Operating and Product Directive

Operating Directive: As an employer or plant operator you are responsible for the correct selection of products, in order to avoid explosions (ATEX Directive1999/92/EG, Section II). By taking into consideration the explosion hazards, e.g.:

·         explosiveness of the materials stored,

·         frequency of presence of explosive atmospheres,

you are obligated to define a corresponding “zone” (e.g  Zone 1, Zone 2).

Product Directive: Since 2014 products to prevent explosions fall under the new directive 2014/34/EU. ATEX certificates based on Directive 94/9/EG are no longer valid. KIRSCH was the first company in the laboratory cooling sector to react to the new ATEX product directive 2014/34/EU. Intrinsic safety is tested and confirmed by TÜV Süd. We would be happy to send you the test review and help you to choose the correct explosion preventing product. Please contact us.

Laboratory Freezer FROSTER LABEX 730 ULTIMATE

Our ultimate freezer with explosion-proof interior (ATEX protection zone 2). Temperature setting from -10°C to -30°C. Elegant touchscreen made of glass, access control, KIRSCH-Airflow-Concept, automatic defrosting and much more.
This explosion-proof laboratory refrigerator offers you maximum temperature accuracy thanks to a secured air circulation fan that ensures even cooling. With its certified explosion protection (zone 2), it also ensures maximum safety when handling sensitive or hazardous substances. The hermetically sealed refrigeration unit impresses with its energy efficiency, quiet operation and easy maintenance - ideal for demanding everyday laboratory work.

·         5 grids

·         Explosion protection (zone 2) more information

·         Forced-air cooling

·         External dimensions 77 x 97 x 195.5 (W x D x H in cm)

 Technical data
