| Price: | 0৳ |
| Status : | Call For Price |
| Brand: | Electronic India |
Features
· Transmission and Absorbance Modes
·
Auto Zeroing Facility
·
Highly Accurate & Stable
·
Range 400 to 700 nm
·
Soft Touch Membrane keys
Microprocessor

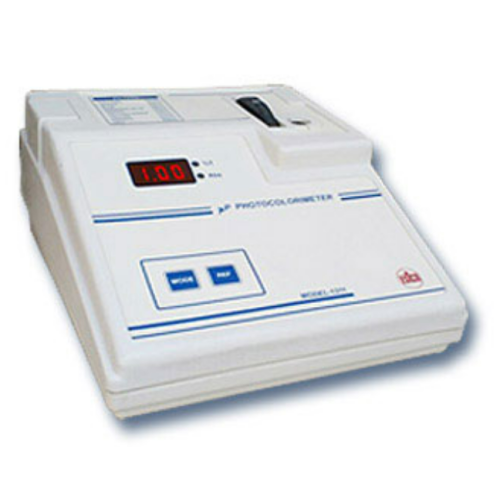

Photo Colorimeter – 1311 is a compact and easy to operate instrument for
Photo Colorimeter analysis of any concentration. The output is available on a 3
digit seven segment red LED display in terms of %Transmission (%T), Absorbance
(Abs.). This instrument has the facility for auto zeroing of Absorbance and
setting 100% Transmission. The use of microcontroller has made it extremely
versatile and state-of-the-art instrument. 10 mm pathlength matched test tubes
are used for sample and blank.
The instrument operates at wavelength between 400 to 700 nm
range. The use of high standard wide range glass filters covering 400 to 700 nm
in the monochromator gives extremely good results. The filter setting is
controlled by a rotating disc having 8 filters. An automatic shutter is
provided to stop the light reaching the sensor, when test tube is not inserted
in the tube holder. This increases the life of sensor tremendously.
|
Wavelength Range |
400 –
700 nm |
|
Resolution |
%T: 1,
Abs: 0.01 |
|
% Transmission |
0 – 100 |
|
Absorbance |
0 – 1.99 |
|
Photo Detector |
wide
range Silicon Photodiode |
|
Display |
3 Digit
Bright Red 7-Segment LED Display |
|
Keyboard |
2 Keys,
Soft Touch Membrane Keys |
|
Auto Zeroing |
Available
(for Abs.) and 100 % for %T |
|
Light Sources |
LED |
|
Solution Volume |
1 ml
(Minimum) |
|
Sample System |
10 mm
path-length matched glass test tube |
|
Filters |
400,
450, 490, 520, 540, 570, 620, 680 nm filters, |
|
Power |
230 V ±
10% AC, 50 Hz |
|
Weight |
2.5 Kg
(Approx.) |
|
Accessories |
Matched
Test Tube: A set of 5, |
