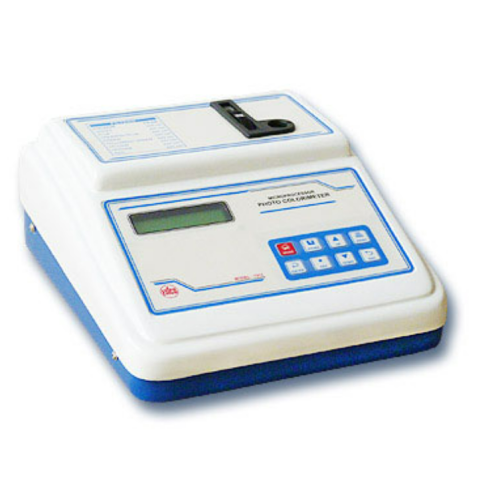

Microprocessor Photo
Colorimeter – 1312 is a compact and easy to operate instrument for Photo
Colorimeter analysis of any concentration. The output is available on a 16 x 2
line alphanumeric backlit LCD display in terms of %Transmission (%T),
Absorbance (Abs.), Concentration (Conc.), and KFactor. This instrument has 100
sample storage memory and printer output facility for printing data with any
dot matrix printer. The use of microcontroller has made it extremely versatile
and accurate instrument. 10 mm pathlength matched test tubes are used for
sample and blank. Facility has been provided to store the last KFactor and the
standard concentration value. User can also enter any known ‘Factor’ for a
test, thereby eliminating the need to re-run the standards again and again.
The use of high class
standard wide range glass filters covering 400 to 700 nm give extremely good
results. The filter setting is controlled by a rotating disc having 8 filters.
An automatic shutter is provided to stop the light reaching the photocell, when
test tube is not inserted in the tube holder. This increases the life of
photocell tremendously.
|
Wavelength Range |
400 – 700 nm |
|
Resolution |
%T: 1, Abs: 0.01,
Conc.: 1, KFactor: 1 |
|
% Transmission |
0 – 100% T |
|
Absorbance |
0 – 1.99 A |
|
Concentration |
0 – 19999 |
|
K Factor |
1 – 19999 |
|
Photo Detector |
Silicon
Photodiode/Photo Cell |
|
Display |
16×2 line
alphanumeric LCD display for %T, ABS., Conc., K Factor |
|
Keyboard |
8 Keys, soft touch
membrane type |
|
Data Storage |
Up to 100 samples |
|
Light Source |
LED |
|
Sample System |
10 mm path length
matched glass test tubes |
|
Filter |
400, 450, 490, 520,
540, 570, 620, 680 nm |
|
Printer Interface |
Printer Interface
for any dot matrix printer |
|
Dimensions |
250 x 240 x 90 mm |
