Features

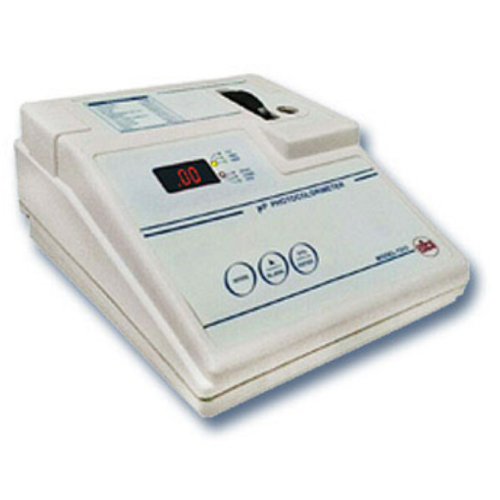

Microprocessor Photo
Colorimeter – 1313 is a compact and easy to operate instrument for Photo
Colorimeter analysis of any concentration. The output is available on a 3 digit
seven segment red LED display in terms of %Transmission (%T), Absorbance
(Abs.), and Concentration (Conc.) and KFactor. This is a unique system that
combines convenience with accuracy and precision in analysis.
The instrument includes a
wide range of filters covering wavelength from 400-700 nm in the form of in-built
filters. The filter setting is controlled by a rotating disc. An in-built
shutter control is provided to avoid fatigue of photodiode. When the instrument
is switched on, Lamp glows and light passes through the solution to the
detector and absorbance or %T measurement is taken. Light source is pre-focused
tungsten lamp. The instrument confirms to all general & safety standards.
|
Wavelength Range |
400 – 700 nm |
|
Filter System |
In-built filter
disc with 8 standard filters |
|
Sample Size |
1 ml |
|
Sample System |
10 mm path-length
matched glass test tubes |
|
Detector |
Silicon Photodiode |
|
Display |
3 Digit 7-Segment
Red LED Display |
|
Keyboard |
Soft Touch Membrane
Keys |
|
Light Sources |
Special LED Light
Source |
|
Readout |
%T: 0 – 100, Abs: 0
– 1.99, Conc.: 1.0 – 999, KFactor: 1.0 – 999 |
|
Power |
230 V ± 10% AC,
50Hz |
|
Dimensions |
192 x 238 x 103 mm
(Approx.) |
|
Weight |
2.5 Kg (Approx.) |
|
Accessories |
Matched Test Tube:
(A set of 5), Operation Manual and Dust Cover |
