Shaking Motion

: Orbital, 4 mm Stroke

Speed Range

: 3,300 rpm

Control

: Steepless Analog Variable Speed Control

: 3 Position Multi Function Switch  [ Continuous / Touch-On / OFF ]

Safety

: Over-Current Cut-Off

Material

: Body - Epoxy Powder Coated Aluminum Casting

: 3 inch Rubber Platform Head – Engineering Plastic/Synthetic Rubber

: Pop-Off Cup Head – Engineering Plastic

: Remove Applicator – Engineering Plastic

Electric

: 230±10% VAC 50Hz 1-Phase or 230±10% VAC 60Hz 1-Phase

Plug config.

: CEE 7/7 Schuko or BS 1363

Shaking Motion

: Orbital, 4 mm Stroke

Speed Range

: 3,300 rpm

Control

: Steepless Analog Variable Speed Control

: 3 Position Multi Function Switch  [ Continuous / Touch-On / OFF ]

Safety

: Over-Current Cut-Off

Material

: Body - Epoxy Powder Coated Aluminum Casting

: 3 inch Rubber Platform Head – Engineering Plastic/Synthetic Rubber

: Pop-Off Cup Head – Engineering Plastic

: Remove Applicator – Engineering Plastic

Electric

: 230±10% VAC 50Hz 1-Phase or 230±10% VAC 60Hz 1-Phase

Plug config.

: CEE 7/7 Schuko or BS 1363

Shaking Motion

: Orbital, 4 mm Stroke

Speed Range

: 3,300 rpm

Control

: Stepless Analog Variable Speed Control

: 3 Position Multi Function Switch  [ Continuous / Touch-On / OFF ]

Safety

: Over-Current Cut-Off

Material

: Body - Epoxy Powder Coated Aluminum Casting

: 3 inch Rubber Platform Head – Engineering Plastic/Synthetic Rubber

: Pop-Off Cup Head – Engineering Plastic

: Remove Applicator – Engineering Plastic

Electric

: 230±10% VAC 50Hz 1-Phase or 230±10% VAC 60Hz 1-Phase

Plug config.

: CEE 7/7 Schuko or BS 1363

Shaking Motion

: Orbital, 4 mm Stroke

Speed Range

: 3,300 rpm

Control

: Steepless Analog Variable Speed Control

: 3 Position Multi Function Switch  [ Continuous / Touch-On / OFF ]

Safety

: Over-Current Cut-Off

Material

: Body - Epoxy Powder Coated Aluminum Casting

: 3 inch Rubber Platform Head – Engineering Plastic/Synthetic Rubber

: Pop-Off Cup Head – Engineering Plastic

: Remove Applicator – Engineering Plastic

Electric

: 230±10% VAC 50Hz 1-Phase or 230±10% VAC 60Hz 1-Phase

Plug config.

: CEE 7/7 Schuko or BS 1363

Shaking Motion

: Orbital, 4 mm Stroke

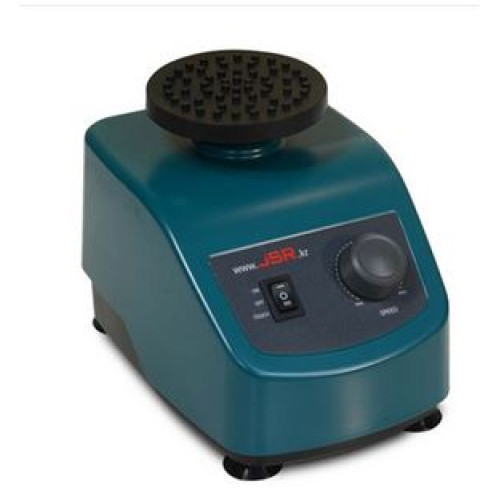

Art No.

JSVX-7R

Shaking Speed

Range

0 to 3,300 rpm

Motion

Orbital

Stroke

4 mm

Control

Type

Steepless variable speed control

Switch

Multi-Position Continuous, Touch ON, Off

Motor

Brushless Shade Motor

Max. Load & Power

0.5 kgs, 30 watt

Dimensions

Main Body

W130 x D190 x H120 mm

3” Platform

86 mm (3 inch)

Pop-Off Cup Head

50 mm

Material

Main Body

Aluminum Casting /w Powder Coating

3” Platform

Engineering plastic, rubber

Pop-Off Cup Head

Engineering plastic

Applicable Container

All kind of micro tubes or conical tubes

Safety

Over Current Cut-Off

Electrical Requirement

220±10% VAC 50Hz 1-Phase or 220±10% VAC 60Hz 1-Phase

Power Plug

CEE 7/7 Schuko European Standard   or BS 1363 British Plug

Controller

Stepless variable speed control up to maximum 3,300 rpm

Three (3) Position Multi-Function Switch allows “Continuous”, “Touch ON” and “Off” control

Construction

Durable aluminum casting main body with epoxy powder coating

Suction-Cup type Feet provide strong and stable attachment on the table surface and reduce vibration

Performance

Speed control to 3,300 rpm

Convenience

Various choice of attachments included

• 3 inch Rubber Platform Head x 1 ea
• Pop-Off Cup Head x 1 ea
• Remove Applicator x 1 ea

Safety

OVER CURRENT CUT-OFF : Fuse
