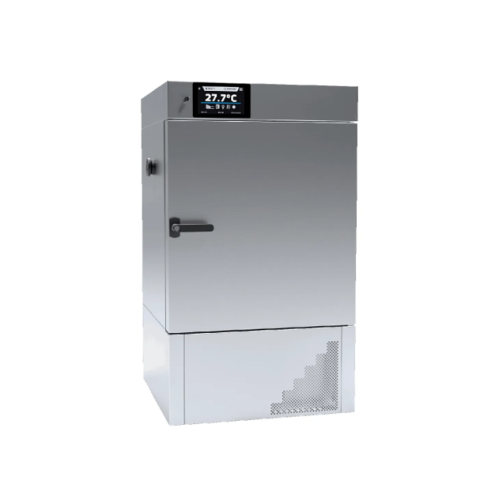

Standard equipment KK 115

• temperature range 0…+60°C
• chamber capacity 109 liters
• working capacity 109 liters
• quality control protocol (at +25°C, 60%rH)
• instruction manual in English and menu in various languages
• over temperature protection 3.3 class according to DIN 12880
• open door alarm
• castors in the standard
• LAN port and USB port
• access port to enter an external sensor (Ø30 mm) on the left side of the unit
• automatic defrosting function
• container for deionised water
• door lock
• Stainless steel wire shelf (INOX)
• double doors (external full, internal glass)
• Wi-Fi communication
• LAN cable
• LabDesk software
• available controllers: Smart PRO
• special models:

FIT – phytotron system – day and night simulation with intensity control, detailed data look climatic chambers with phytotron system

TECHNICAL DATA

air convection   forced

chamber capacity [l]      109

working capacity [l]        109

controller           microprocessor PID

display  7" full colour touch screen

TEMPERATURE AND HUMIDITY

temperature range [°C]               0…+60

temperature resolution every … [°C]     0,1

temperature variation at 25°C and 60%rH [+/-°C]*        2

temperature protection              class 3.3 to DIN 12880

relative humidity range [%]        30…90 (see chart for details)

humidity resolution every … [%]             0,1

humidity variation at 25°C and 60% rH [%rH]   5

CHAMBER

door type           double (external solid, internal glass) / external glass (option)

interior

Smart PRO         acid-proof stainless steel to DIN 1.4301

IG Smart PRO    acid-proof stainless steel to DIN 1.4301

housing

Smart PRO         powder coated sheet

IG Smart PRO    stainless steel linen finish

overall dims [mm] /1/

width A 660

height B              1330

depth C               950

internal dims [mm]

width D               460

height E              530

depth F 440

shelves (standard | max)            2 | 7

max shelf workload [kg] /2/       10

- reinforced shelf version (PW) [kg] /3/  50

max unit workload [kg] 60

weight [kg]         90

ELECTRICAL PARAMETERS

voltage 230V 50/60Hz

nominal power [W]        1350

refrigerant         R1234ze / GWP=7

warranty             24 months

manufacturer   POL-EKO®
