ColorFlex EZ Citrus Spectrophotometer / Colorimeter/ Colorimeter HunterLab America

Easy-to-use. Compact. And Increased Performance.

ColorFlex EZ Citrus Spectrophotometer gives you unsurpassed

confidence and trust in your outcomes.

The ColorFlex EZ Citrus measures Citrus Number, Citrus Redness and Citrus Yellowness. These indices were primarily intended to score orange juice concentrate, but in practice have also been used for grapefruit and lemon juices. In addition to the citrus values, the instrument can also measure in terms of the Hunter Lab scale as well as other widely used color scales. Thus the system can also be used to measure the reflected color of virtually any opaque or semi-opaque liquid.

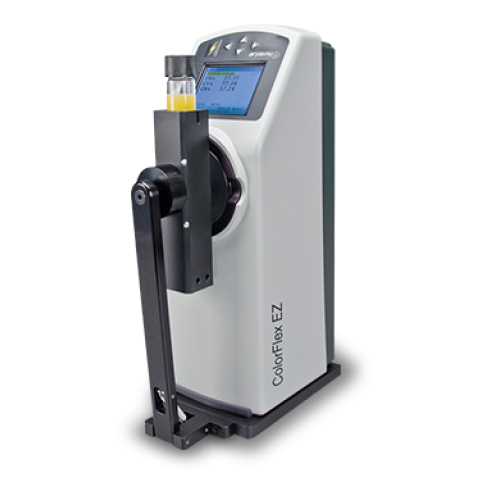

The system comes complete with a sample tube holder, stand, clamp and a calibrated plastic O.J. standard. The instrument has a large, easy-to-read display and a sealed keypad. It requires very little bench space, and is very easy to use. In practice, the juice sample is poured into a test tube or capped tube. The tube is inserted into the instrument tube holder. By pressing one button on the instrument the measurement is made. CN (Citrus Number), CR (Citrus Redness) and CY (Citrus Yellowness) will simultaneously be displayed. The ColorFlex EZ Citrus can be connected to a printer if hard copy data is desired.

                                                                                                                                             Production - Specification

Measurement  :

Measurement Principle: Port up or Port forward dual-beam benchtop spectrophotometer/colorimeter

 Geometry: Directional annular 45° illumination / 0° viewing

 Spectrophotometer/Colorimeter: Sealed optics; 256-element diode array and a high resolution concave holographic grating

 Port Diameter/View Diameter: 31.8 mm (1.25 in) illuminated/ 25.4 mm (1 in) measured

Specular Component: Excluded

 Spectral Range: 400 nm - 700 nm

 Spectral Resolution: < 3 nm

 Effective Bandwidth: 10 nm equivalent triangular

Reporting Interval: 10 nm

 Photometric Range: 0 to 150 %

 Light Source: Pulsed Xenon Lamp

 Flashes per Measurement: 1 flash

 Lamp Life: > 1 million flashes

 Measurement Time: < 1 second from button push to measurement 2 seconds from button push to data display

 Minimum Interval Between Measurements: 3 seconds

 Standards Conformance: CIE 15:2004, ISO 7724/1, ASTM E1164, DIN 5033, Teil 7 and JIS Z 8722 Condition C

 Standards Traceability: Instrument standard assignment in accordance with National Institute of Standards and Technology (NIST) following practices described in CIE Publication 44 and ASTM E259

Performance :

Inter-Instrument Agreement:

∆E*< 0.15 CIE L*a*b* (Avg) on BCRA II Tile Set

∆E*< 0.25 CIE L*a*b* (Max) on BCRA II Tile Set

Colorimetric Repeatability: ∆E*< 0.05 CIE L*a*b* on white tile (20 Readings)

Firmware :

Height: 16 cm (6.3 in.)

Width: 13 cm (5.1 in.)

Depth: 36 cm (14.2 in.)

Weight: 4.5 kg (9.9 lbs)

Display: 7.1 cm x 5.4 cm (2.8 in. x 2.1 in.) backlit color LCD

 Interface: 3 USB 2.0 ports

 Power: 100 to 240 VAC 47 to 63 Hz

 Operating Environment: 10° to 40°C (50° to 104° F), 10 % to 90 % RH, noncondensing

 Storage Environment: -20° to 65°C (-5° to 150° F), 10 % to 90 % RH, noncondensing

 Standard Accessories:

Calibrated instrument white tile

Certificate of traceability

Black glass

Green diagnostic tile

Universal AC adaptor

Computer interface cable

USB flash drive

ColorFlex EZ User guide

Physical/Electrical :

Dimensions:

Height: 16 cm (6.3 in.)

Width: 13 cm (5.1 in.)

Depth: 36 cm (14.2 in.)

Weight: 4.5 kg (9.9 lbs)

Display: 7.1 cm x 5.4 cm (2.8 in. x 2.1 in.) backlit color LCD

Interface: 3 USB 2.0 ports

Power: 100 to 240 VAC 47 to 63 Hz

Operating Environment: 10° to 40°C (50° to 104° F), 10 % to 90 % RH, noncondensing

Storage Environment: -20° to 65°C (-5° to 150° F), 10 % to 90 % RH, noncondensing

Standard Accessories:

Calibrated instrument white tile

Certificate of traceability

Black glass

Green diagnostic tile

Universal AC adaptor

Computer interface cable

USB flash drive

ColorFlex EZ User guide
