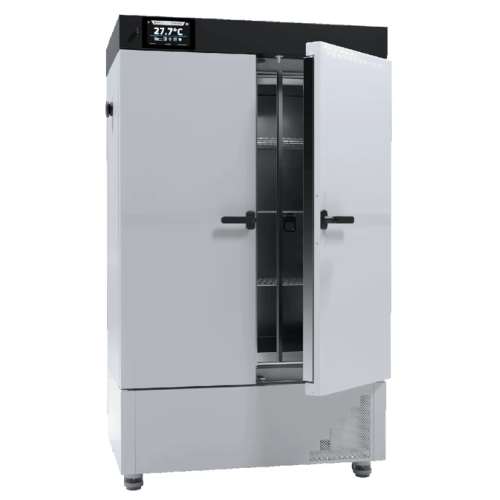

Cooled Incubator 0…+70 (-10…+70/100) 424L ILW 400 Smart/ Smart PRO Pol-Eko Poland

Standard equipment ILW 400

• temperature range 0…+70°C / -10 (option) / ... +100°C (Smart PRO)
• chamber capacity 424 liters
• working capacity 424 liters
• instruction manual in English and menu in various languages
• over temperature protection 2.0 class (Smart), 3.3 class (Smart PRO) according to DIN 12880
• open door alarm
• castors
• LAN port and USB port
• access port to enter an external sensor (Ø30 mm) on the left side of the unit
• door lock
• Stainless steel wire shelf (INOX)
• double doors (external full, internal glass)
• Wi-Fi communication (only Smart PRO)
• LAN cable (only Smart PRO)
• LabDesk software for, inter alia, downloading data on computer (only Smart PRO, for Smart version – optional)
• available controllers: Smart lub Smart PRO
• special models:

FOT – photoperiodic system – day and night simulation

FIT – phytotron system – day and night simulation with intensity control

Specification:

TECHNICAL DATA

air convection                                   forced

chamber capacity [l]                        424

working capacity [l]                        424

controller                                          microprocessor PID

display                                               4,3" full colour touch screen

TEMPERATURE

temperature range [°C]                                  0…+70 / -10…+70 (option)

temperature resolution every … [°C]           0,1

temperature fluctuation at 37°C [+/-°C]*   0,2

temperature variation at 37°C [+/-°C]*       0,3

temperature protection   class 2.0 to DIN 12880 / class 3.3 (option)

CHAMBER

door type             double(5) / door with viewing window (option)

interior

Smart    acid-proof stainless steel to DIN 1.4301

IG Smart               acid-proof stainless steel to DIN 1.4301

housing

Smart    powder coated sheet

IG Smart               stainless steel linen finish

overall dims [mm] /1/

width A                               1020

height B                               1720

depth C                               790

internal dims [mm]

width D                               800

height E                               1040

depth F                                500

shelves (standard | max)  3 | 14

max shelf workload [kg] /2/                         25

- reinforced shelf version (PW) [kg] /3/     100

max unit workload [kg]                                 120

- reinforced unit version (W) [kg] /4/         300

weight [kg]          185

ELECTRICAL PARAMETERS

voltage  230V 50/60Hz

nominal power [W]                                        1300

refrigerant                                                        R290 / GWP=3

warranty                                                          24 months

manufacturer                                                   POL-EKO®
