When the overhead stirrer is installed in a higher and farther position, such as connecting with the reaction systems, the operator cannot easily to operate.

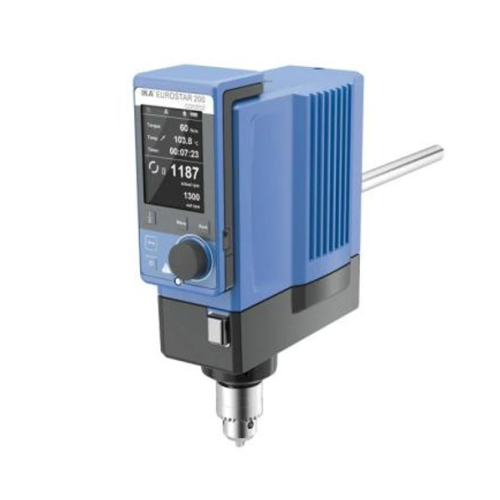

We have developed and designed a remotely controllable stirrer that separates the stirring part from the control part and makes it easier to operate through a remote panel.

Technical features:

• Speed accuracy (rpm): ± 1rpm
• Torque accuracy (in-lb): ± 5%
• Speed range (rpm): Low: 12~360; High: 361~1800
• Torque (N-cm): Low: 565, High: 113
• Maximum Viscosity (cps): 150000
• Maximum Torque (N-cm): 565
• Chuck range max. diameter (mm): 10
• Maximum capacity (L) H2O: 40
• Output power (W): 150
• Dimensions of the remote panel: 150×100mm
• 2m cable lenght
• Cable connection mode: Quick connector
• Control and display parameters: stirring speed, torque and Stirring mode
• Brushless DC motor
• Totally enclosed and compact metal casing
• Bright TFT screen, which can display stirring speed and torque
• Transmission can be switched between low speed/ high torque, and high speed / low torque
• Easily adjustable spinning chuck
• Precise speed adjustment
• Set speed can be maintained when viscosity of liquid changes
• Easy and time saving impeller adjustments
• Digital and analog interface available
• Monitoring and control via PC software
